Since 2008, Unixplore Electronics has been providing one-stop turnkey manufacture and supply services for high-quality electric hedge trimmer PCBA in China,which is widely used in various electric hedge trimmers for domestic and commercial use. Our company is certified with ISO9001:2015 and adheres to the PCB assembly standard of IPC-610E.
We would like to take this opportunity to introduce you to the high quality electric hedge trimmer PCBA from Unixplore Electronics. Our main goal is to ensure that our customers fully understand the functionality and features of our products. We are always eager to cooperate with existing and new customers to create a better future.
Electric hedge trimmer: This is a gardening tool powered by electricity, mainly used for trimming hedges, shrubs and other plants. It usually has a sharp blade or shearing mechanism that can trim plants easily and quickly, improving the efficiency of gardening work.

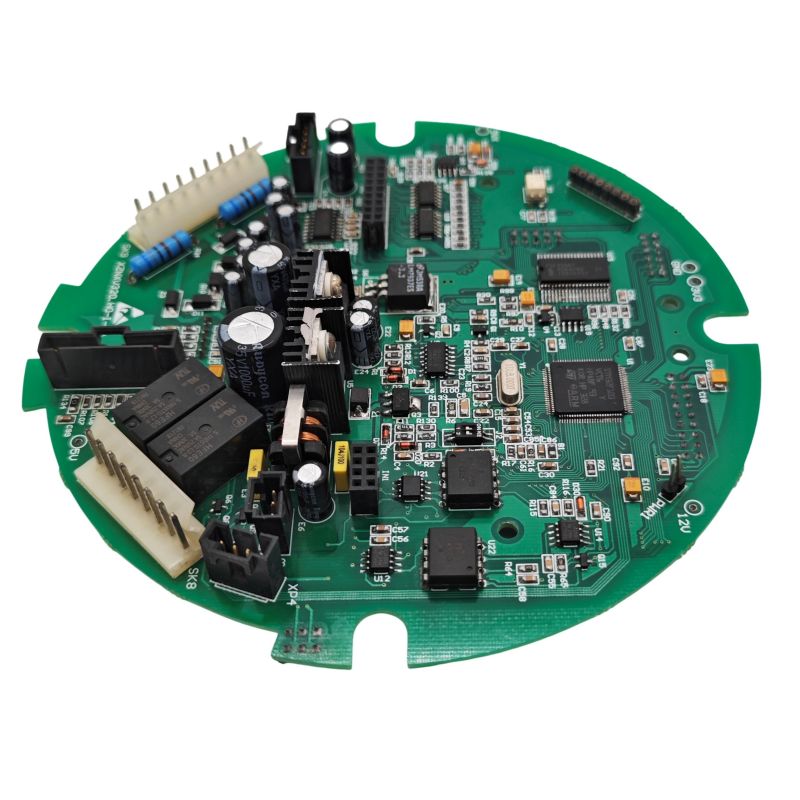

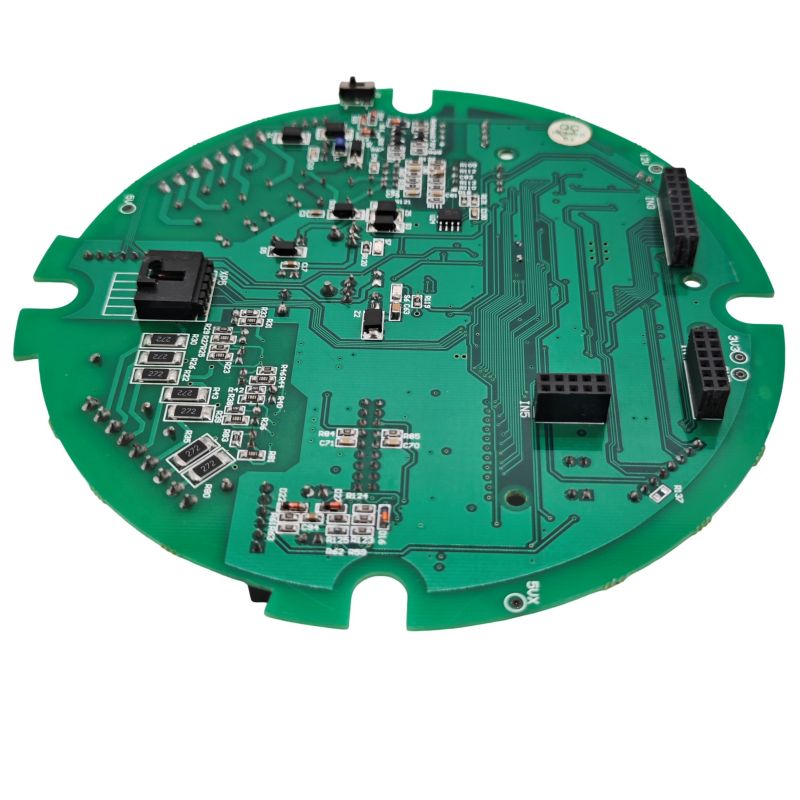

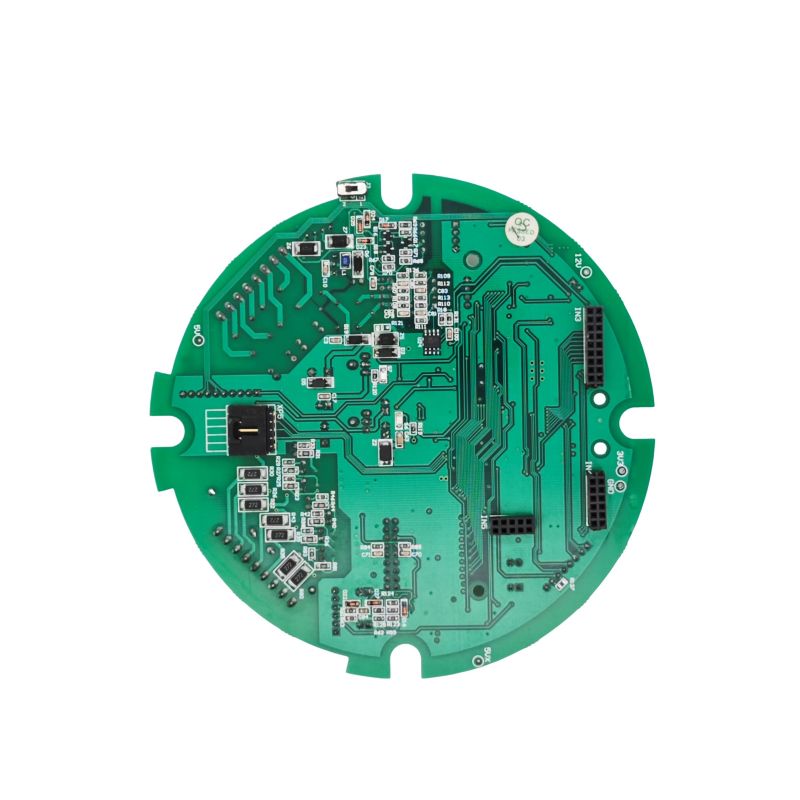

The electric hedge trimmer PCBA refers to the Printed Circuit Board Assembly usded in the electric hedge trimmer. This circuit board component integrates various electronic components required for the trimmer to work, and realizes the various functions of the electric hedge trimmer through specific circuit connections. The quality and design of PCBA directly affect the performance and stability of the electric hedge trimmer.
Unixplore provides one-stop turn-key service for your Contract Electronic Manufacturing project. Feel free to contact us for your circuit board assembly building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!
Parameter | Capability |
Layers | 1-40 layers |
Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
Minimum Component Size | 0201(01005 Metric) |
Maximum Component Size | 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm) |
Component Package Types | BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc. |
Minimum Pad Pitch | 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA |
Minimum Trace Width | 0.10 mm (4 mil) |
Minimum Trace Clearance | 0.10 mm (4 mil) |
Minimum Drill Size | 0.15 mm (6 mil) |
Maximum Board Size | 18 in x 24 in (457 mm x 610 mm) |
Board Thickness | 0.0078 in (0.2 mm) to 0.236 in (6 mm) |
Board Material | CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc. |
Surface Finish | OSP, HASL, Flash Gold, ENIG, Gold Finger, etc. |
Solder Paste Type | Leaded or Lead-Free |
Copper Thickness | 0.5OZ – 5 OZ |
Assembly Process | Reflow Soldering, Wave Soldering, Manual Soldering |
Inspection Methods | Automated Optical Inspection (AOI), X-ray, Visual Inspection |
Testing Methods In-House | Functional Test, Probe Test, Aging Test, High and Low Temperature Test |
Turnaround Time | Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days |
PCB Assembly Standards | ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll |
1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping
