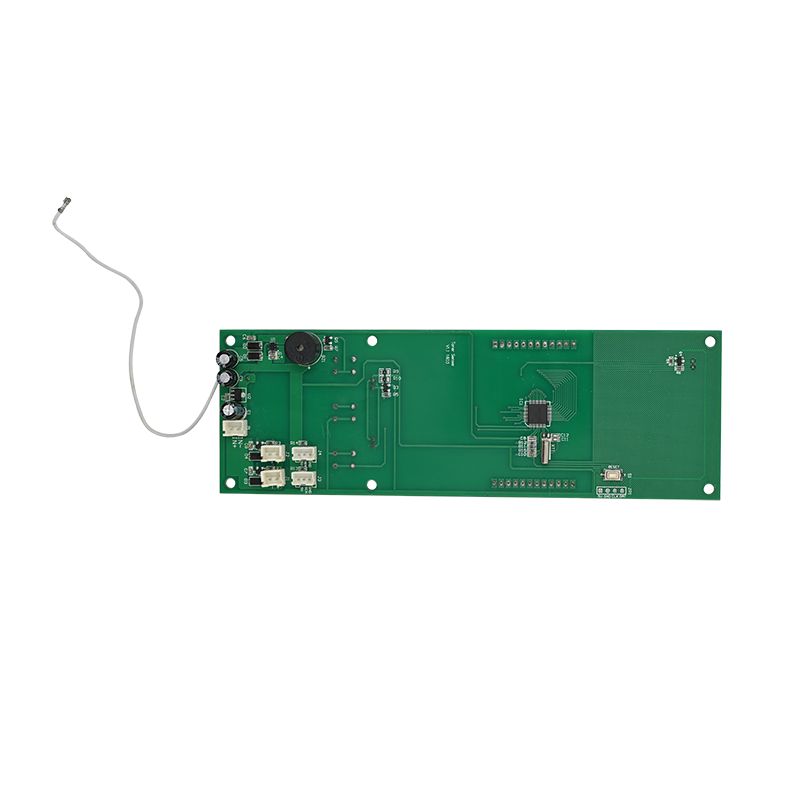

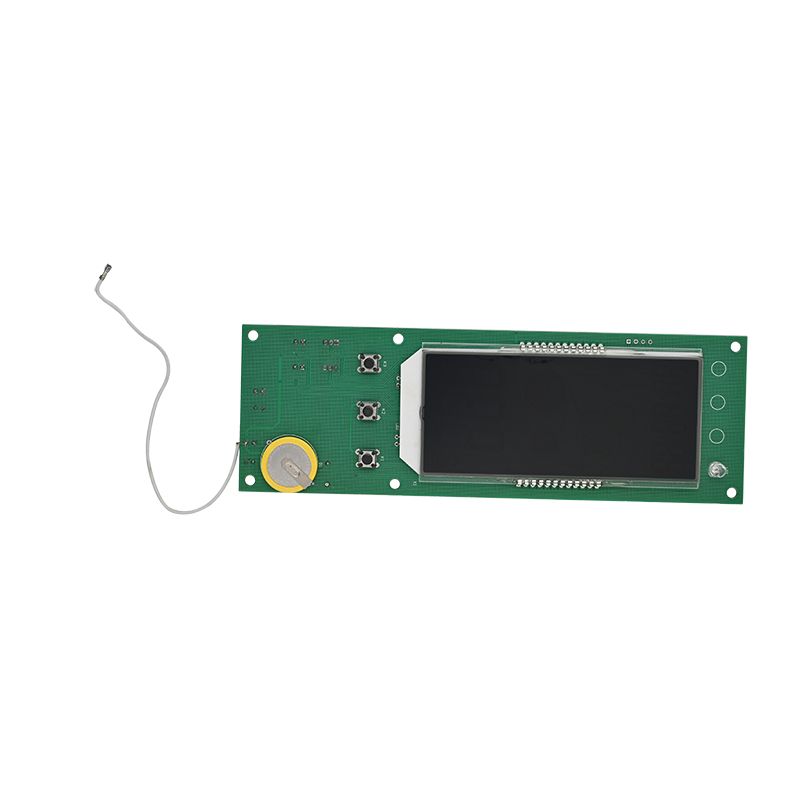

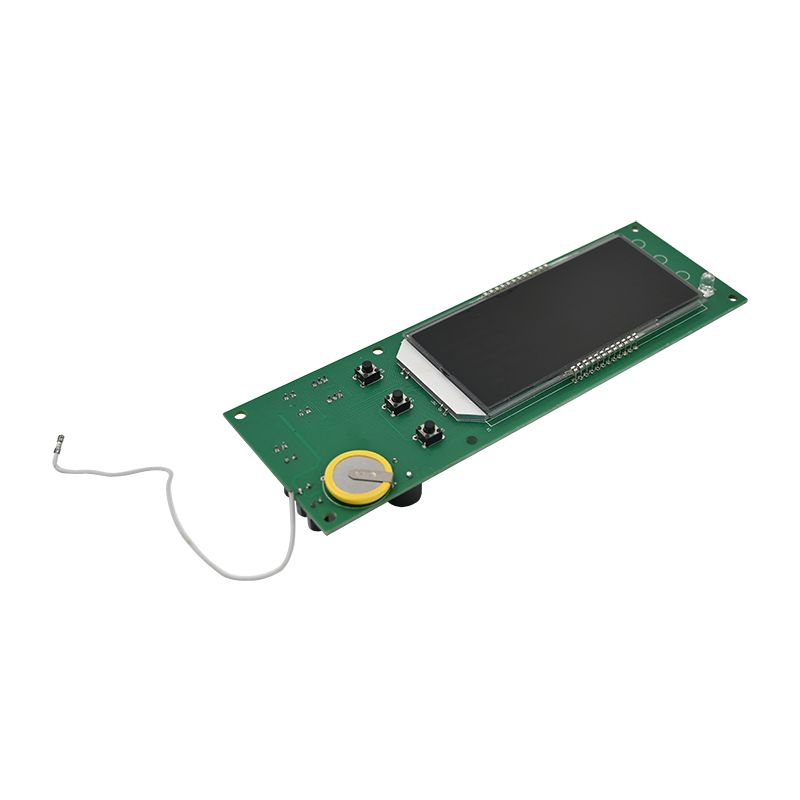

Beauty Instruments PCBA

Product Description

What is Beauty Instruments PCBA?

Since its establishment in 2011, Unixplore Electronics has been committed to the design and manufacture of high-quality beauty instrument PCBAs in the form of OEM and ODM production type.

A Beauty Instrument PCBA is a printed circuit board assembly used in electronic beauty devices. These devices use electrical and/or electronic technologies to stimulate, massage, or apply treatments to the skin and hair. A professional beauty instrument PCBA typically includes several components, such as microcontrollers, power management circuits, sensors, and user interfaces, among others.

Some popular beauty instrument PCBAs include ultrasonic facial devices, LED light therapy machines, radiofrequency skin tightening devices, hair growth helmets, and even smart mirrors. These PCBAs are designed to provide a specific type of beauty treatment to the user in a non-invasive or minimally-invasive way.

Beauty instrument PCBAs are widely used in the beauty industry and can be purchased from electronic components suppliers or manufacturers that specialize in producing PCB assemblies for beauty devices. It's important to note that designing and manufacturing these types of PCBAs requires advanced knowledge in electronics engineering, so if you are planning to create a custom Beauty Instrument PCBA, it's recommended to seek professional help or guidance.

Unixplore provides one-stop turnkey service for your EMS and PCB assembly projects. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Beauty Instruments PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Beauty Instruments PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure
