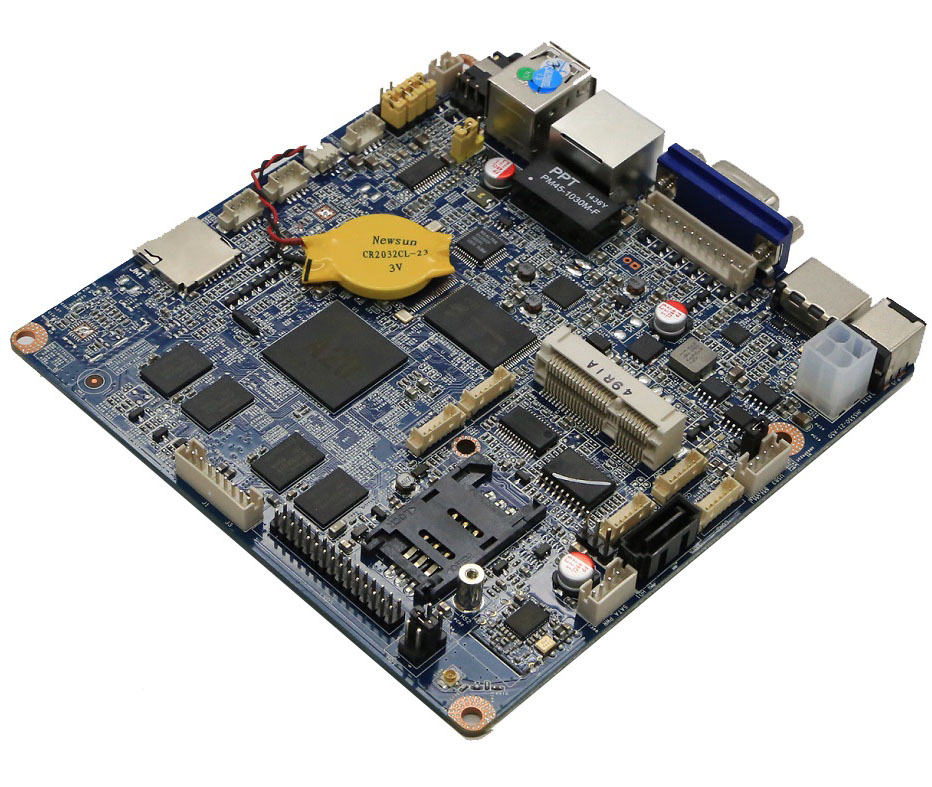

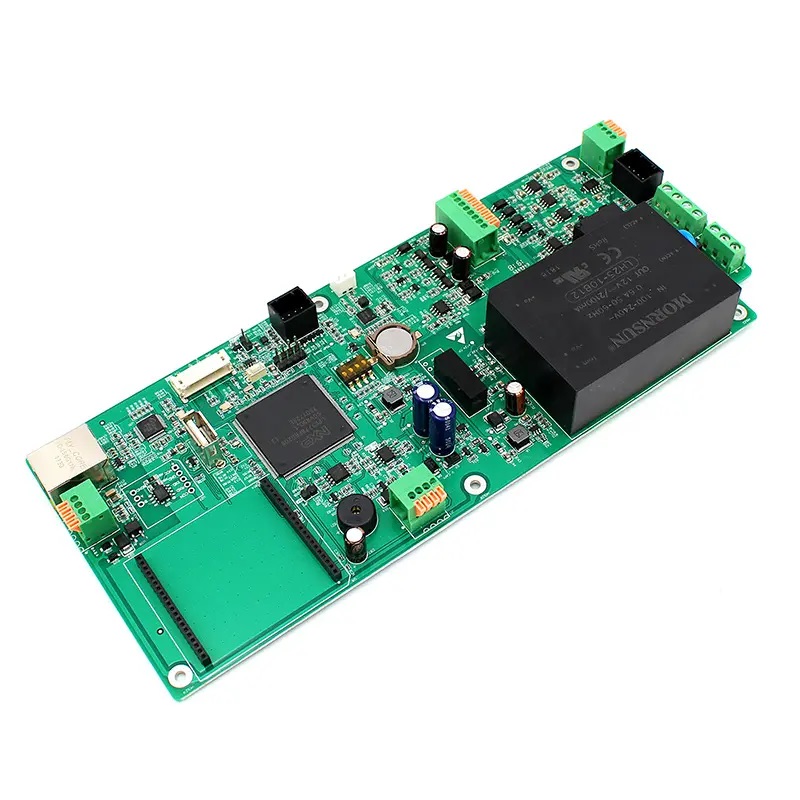

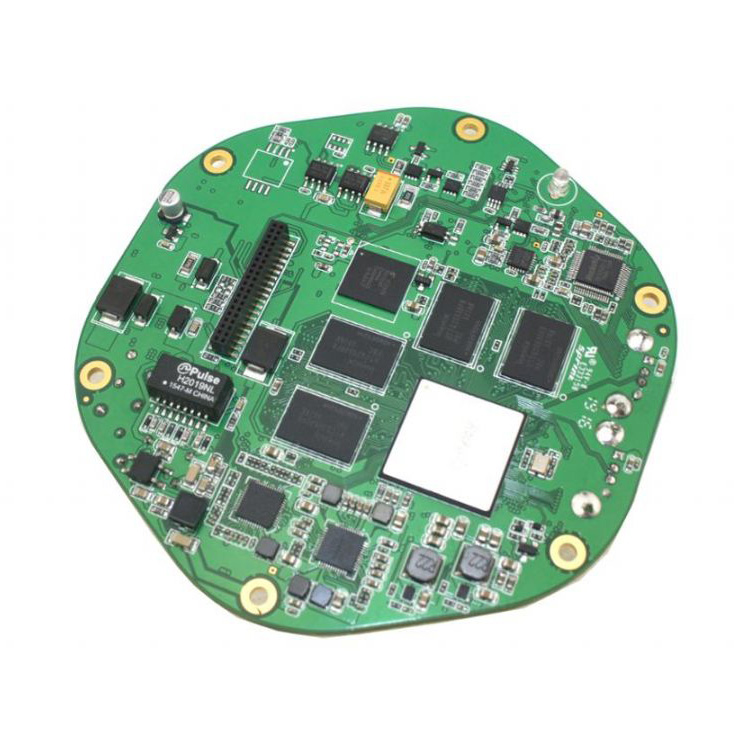

Unixplore Electronics is a Chinese company that has been focusing on creating and producing first-class Charging Pile PCBA for Electric Vehicle since 2008. We have certifications to ISO9001:2015 and IPC-610E PCB assembly standards.
High quality Charging Pile PCBA for Electric Vehicle controller is provided by Chinese manufacturer Unixplore Electronics. Buy high-quality automobile charging pile PCBA directly at low prices.
A charging pile PCBA (Printed Circuit Board Assembly) refers to the electronic circuitry that is part of a charging pile or charging station for electric vehicles (EVs). A charging pile is a device that provides electric power to recharge the batteries of electric vehicles. The circuit card is a crucial component within the charging pile, responsible for controlling and managing the charging process.
The charging pile PCBA cards typically includes various electronic components, such as microcontrollers, power management circuits, communication modules, sensors, and other components necessary for the proper functioning of the charging pile. The microcontroller plays a central role in controlling the charging process, monitoring parameters like voltage, current, and temperature, and communicating with the vehicle or a central management system.
Parameter | Capability |
Layers | 1-40 layers |
Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
Minimum Component Size | 0201(01005 Metric) |
Maximum Component Size | 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm) |
Component Package Types | BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc. |
Minimum Pad Pitch | 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA |
Minimum Trace Width | 0.10 mm (4 mil) |
Minimum Trace Clearance | 0.10 mm (4 mil) |
Minimum Drill Size | 0.15 mm (6 mil) |
Maximum Board Size | 18 in x 24 in (457 mm x 610 mm) |
Board Thickness | 0.0078 in (0.2 mm) to 0.236 in (6 mm) |
Board Material | CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc. |
Surface Finish | OSP, HASL, Flash Gold, ENIG, Gold Finger, etc. |
Solder Paste Type | Leaded or Lead-Free |
Copper Thickness | 0.5OZ – 5 OZ |
Assembly Process | Reflow Soldering, Wave Soldering, Manual Soldering |
Inspection Methods | Automated Optical Inspection (AOI), X-ray, Visual Inspection |
Testing Methods In-House | Functional Test, Probe Test, Aging Test, High and Low Temperature Test |
Turnaround Time | Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days |
PCB Assembly Standards | ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll |
1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping
