Since 2008,Unixplore Electronics specializes in designing and producing high quality digital analyzer PCBA in China with certification of ISO9001:2015 and PCB assembly standard IPC-610E.
If you are looking for high quality digital analyzer PCBA made in China, look no further than Unixplore Electronics. We offer a diverse selection of products at competitive prices and excellent after-sales service. We are also interested in working with potential partners to establish mutually beneficial relationships.

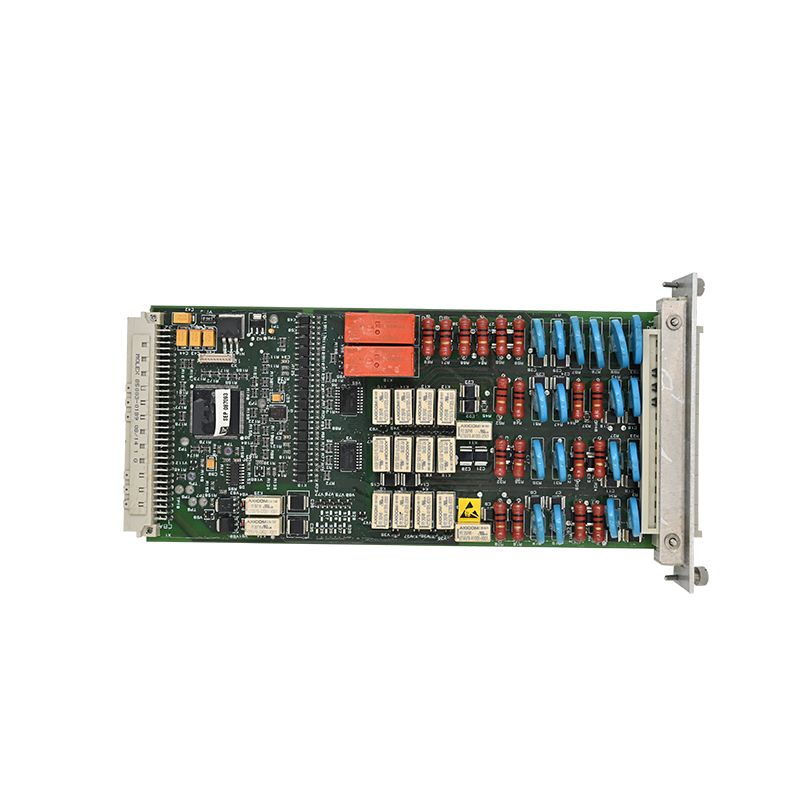

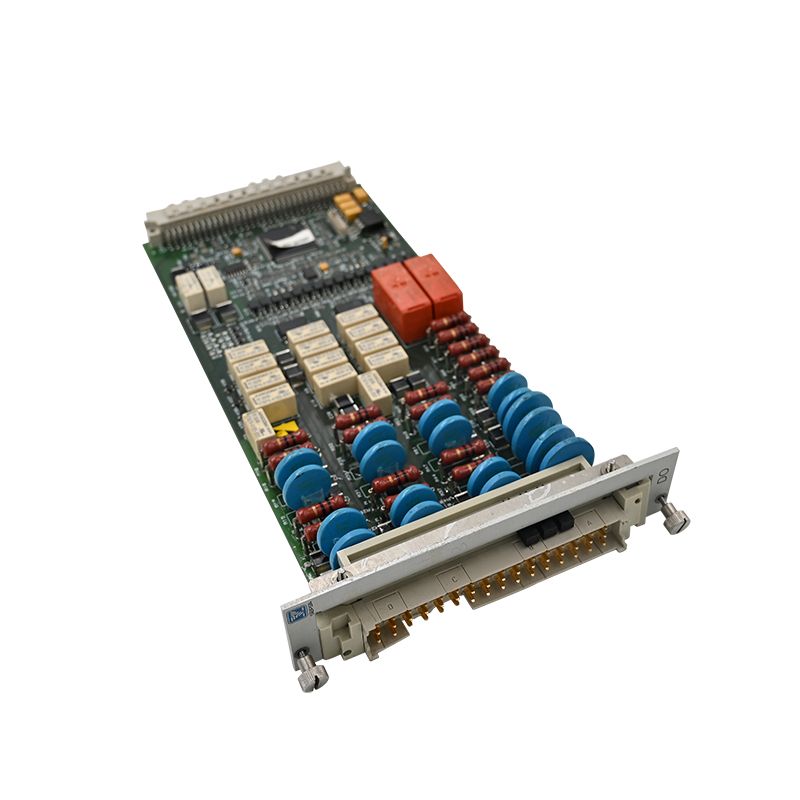

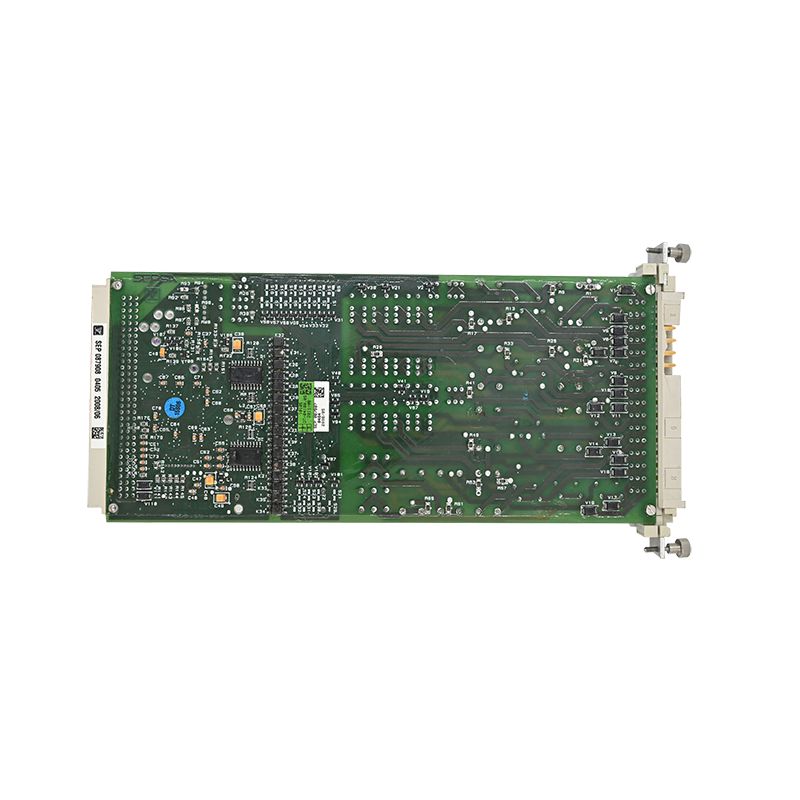

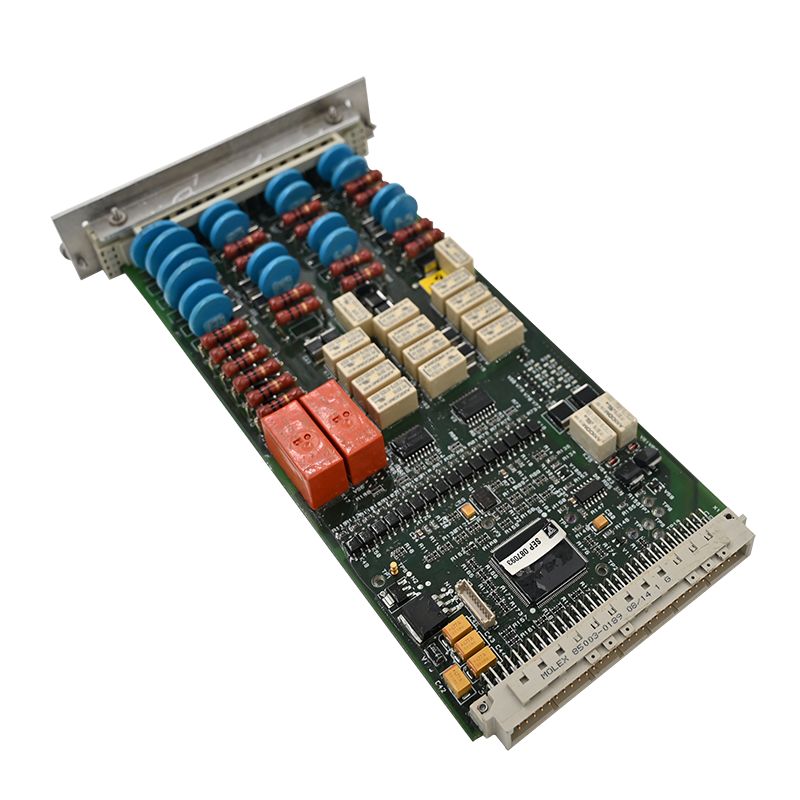

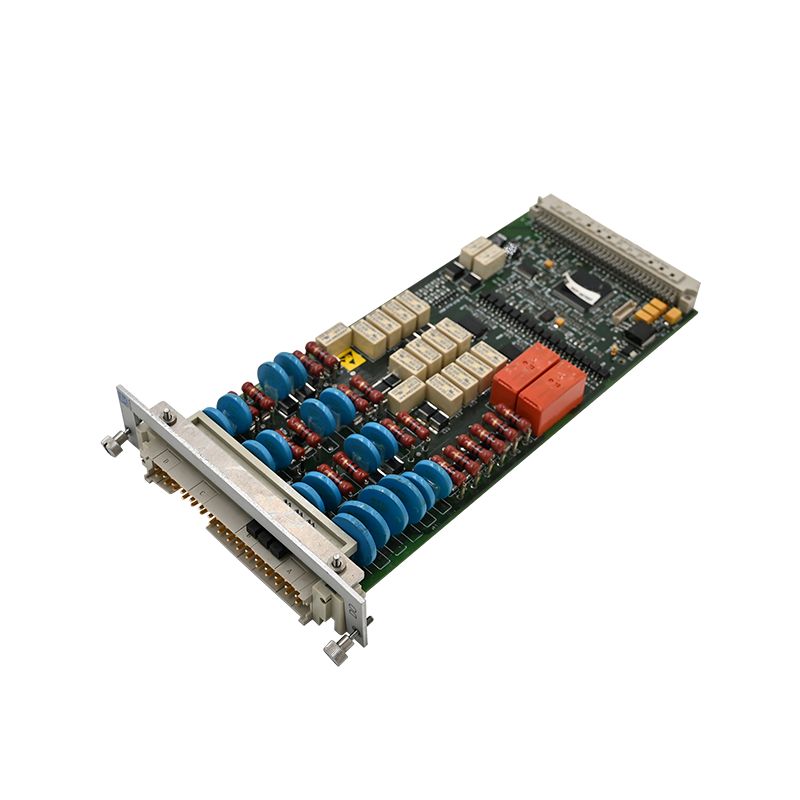

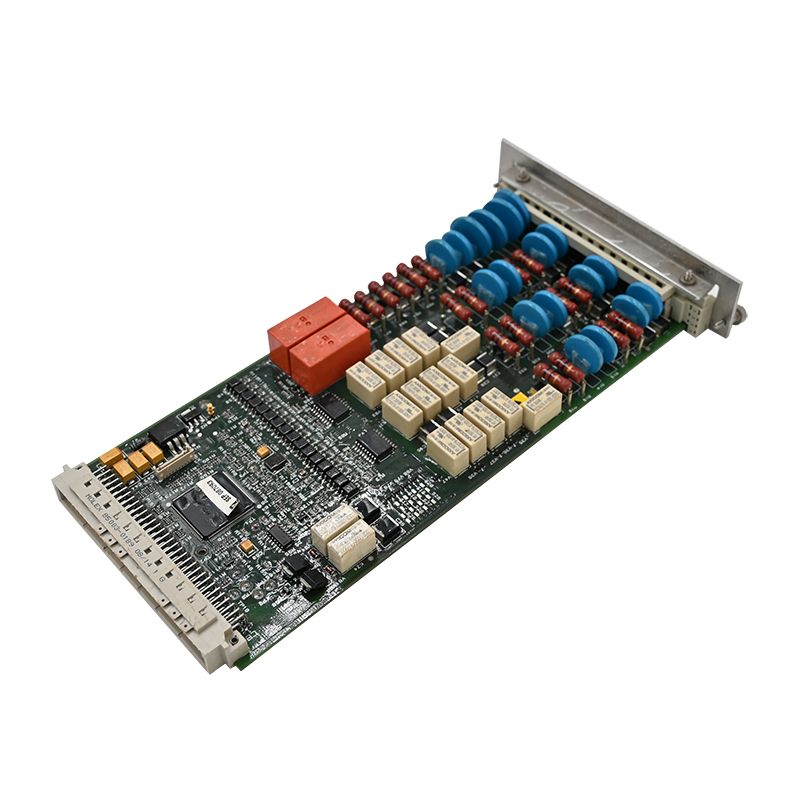

Digital analyzer PCBA can design and optimize different types and application areas to meet the needs of users. Its main functions include collecting signals, analysis signals, processing data, and display results.
Its circuit board design requires selection and optimization based on specific digital analyzer types and application areas.
Generally speaking, the design of the digital analyzer PCBA needs to abide by the following steps:
Determine the requirements: Determine the functional requirements of the digital analyzer, including signal types, analysis algorithms, display methods that need to be collected.
Select the appropriate components: select the appropriate electronic component and chip according to the requirements, such as ADC (Analog Digital converter), DAC (digital Analog Converter), DSP (digital signal processor), etc.
Design circuit: According to the selected electronic component and chip design circuit, including circuits such as signal collection, processing, and display.
Debugging and optimization: After the production of the circuit board is completed, debug and optimize to ensure that the circuit board can work normally and meet the needs.
It should be noted that the design of the digital analyzer PCBA needs to have the characteristics of high accuracy, high stability, and high reliability. At the same time, it is easy to operate and maintain, so that users can easily use and repair. Therefore, strict testing and inspection are needed during the design and production process.
Unixplore provides one-stop turnkey service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!
Parameter | Capability |
Layers | 1-40 layers |
Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
Minimum Component Size | 0201(01005 Metric) |
Maximum Component Size | 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm) |
Component Package Types | BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc. |
Minimum Pad Pitch | 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA |
Minimum Trace Width | 0.10 mm (4 mil) |
Minimum Trace Clearance | 0.10 mm (4 mil) |
Minimum Drill Size | 0.15 mm (6 mil) |
Maximum Board Size | 18 in x 24 in (457 mm x 610 mm) |
Board Thickness | 0.0078 in (0.2 mm) to 0.236 in (6 mm) |
Board Material | CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc. |
Surface Finish | OSP, HASL, Flash Gold, ENIG, Gold Finger, etc. |
Solder Paste Type | Leaded or Lead-Free |
Copper Thickness | 0.5OZ – 5 OZ |
Assembly Process | Reflow Soldering, Wave Soldering, Manual Soldering |
Inspection Methods | Automated Optical Inspection (AOI), X-ray, Visual Inspection |
Testing Methods In-House | Functional Test, Probe Test, Aging Test, High and Low Temperature Test |
Turnaround Time | Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days |
PCB Assembly Standards | ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll |
1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping
