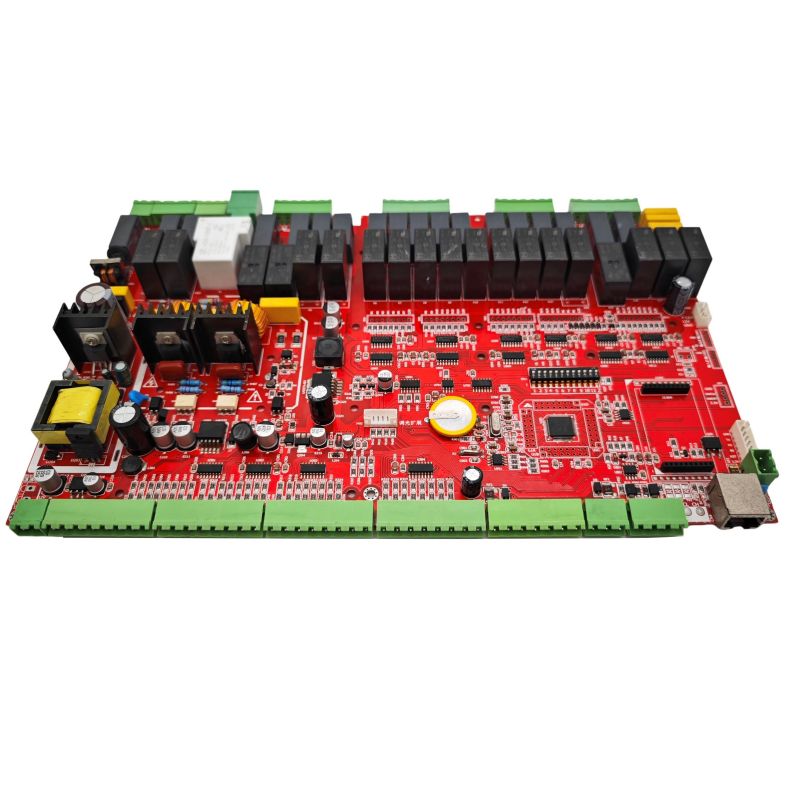

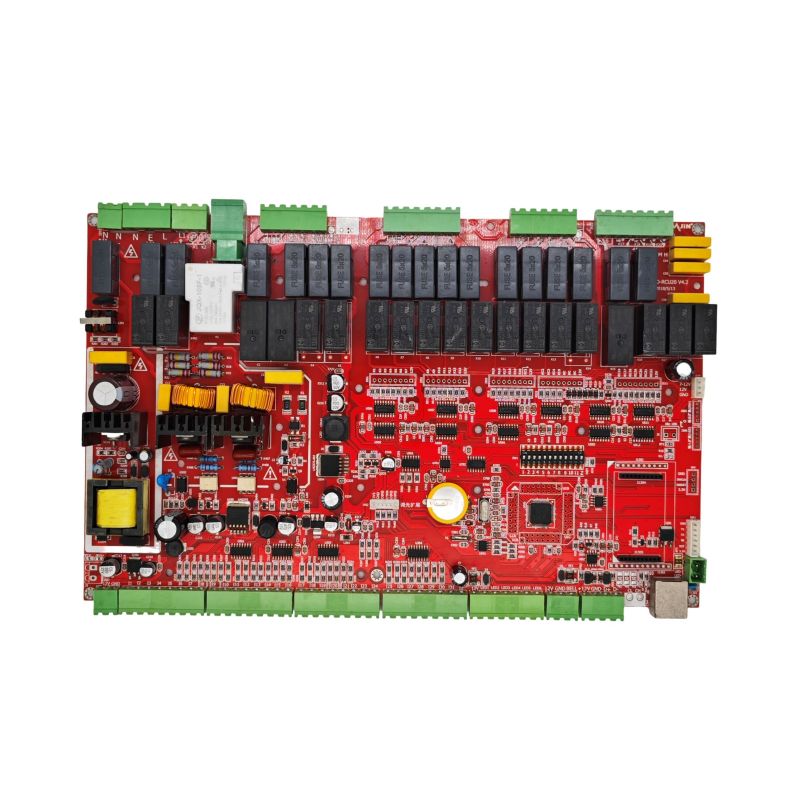

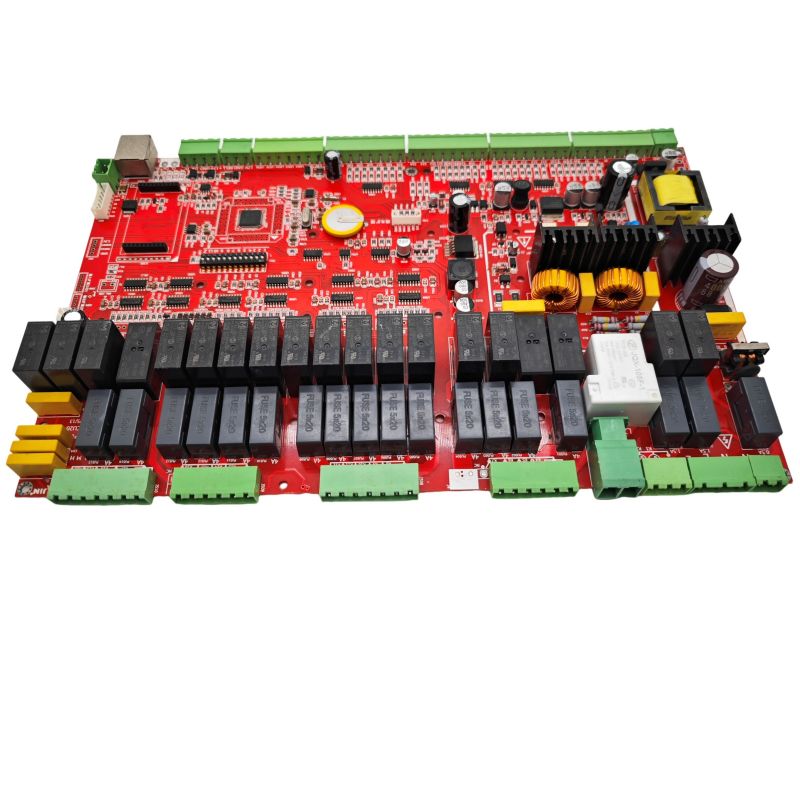

Human Machine Interface PCBA

Product Description

What is Human Machine Interface PCBA?

Unixplore Electronics is proud to offer you Human Machine Inferface PCBA. Our goal is to ensure that our customers are fully aware of our products and their functionality and features. We sincerely invite new and old customers to cooperate with us and move towards a prosperous future together.

Human Machine Interface PCBA refers to the Printed Circuit Board Assembly part of the human-machine interface (HMI). HMI refers to the interactive interface established between people and equipment (such as machines, equipment, production lines, etc.) in automation applications. It usually feedbacks equipment status and receives user input through components such as displays, buttons, touch screens, and indicator lights. HMI PCBA is the core part to achieve this function. Its main functions include the following:

Control CPU: The core component of HMI PCBA is the control CPU, which processes user instructions and completes control logic and data processing.

Display part: Displays information such as the status of the control system, operating interface, and control instructions to the user by driving displays such as LCD screens.

Input part: accepts the user's control instructions, including buttons, touch screens and other input devices, converts them into electrical signals, and sends them to the control CPU for processing.

Communication module: Communicates with other devices (such as sensors, actuators, PLC, etc.), communicates with remote servers, and realizes functions such as remote control and monitoring.

As the core part of Human Machine Interface, Human Machine Interface PCBA has the advantages of high performance, high speed, strong reliability, ease of use, etc., and has strong multi-tasking and communication processing capabilities. Usually used in packaging production lines, automated machine tools, smart homes and other fields. It is necessary to select a suitable HMI PCBA according to specific application requirements to meet the needs of making an efficient, stable, safe and humanized automation control system.

Unixplore provides one-stop TURN-KEY service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Human Machine Interface PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Human Machine Interface PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance
