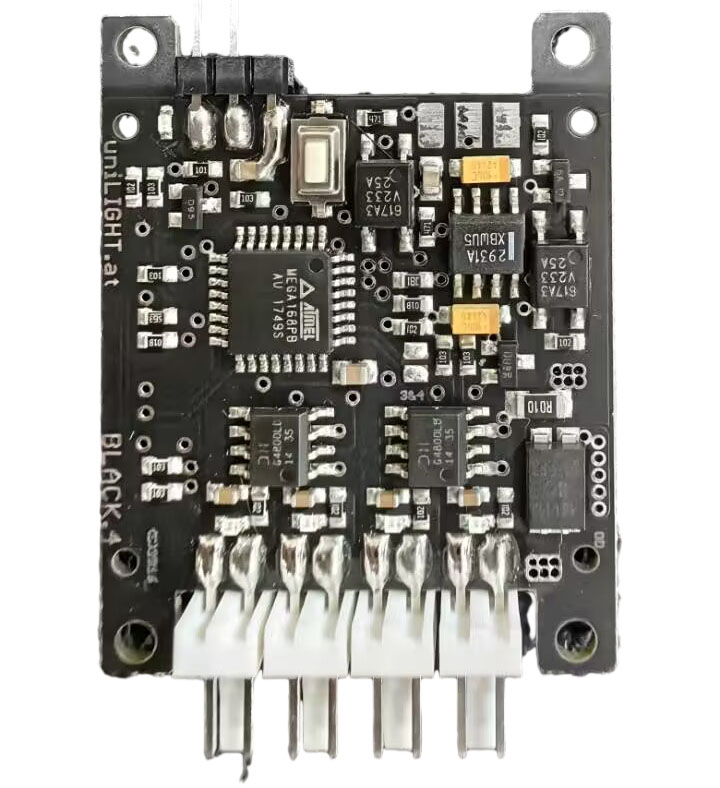

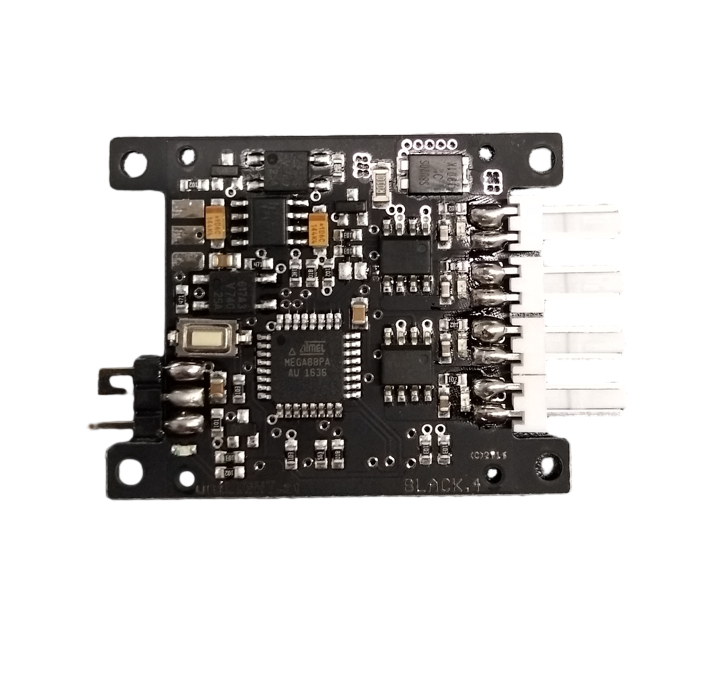

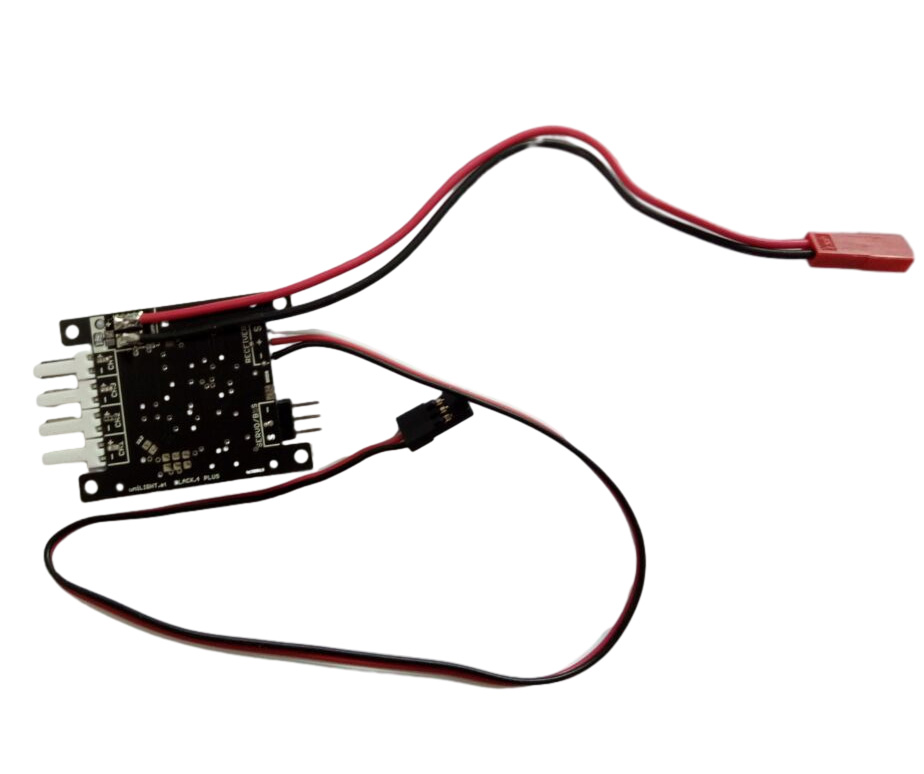

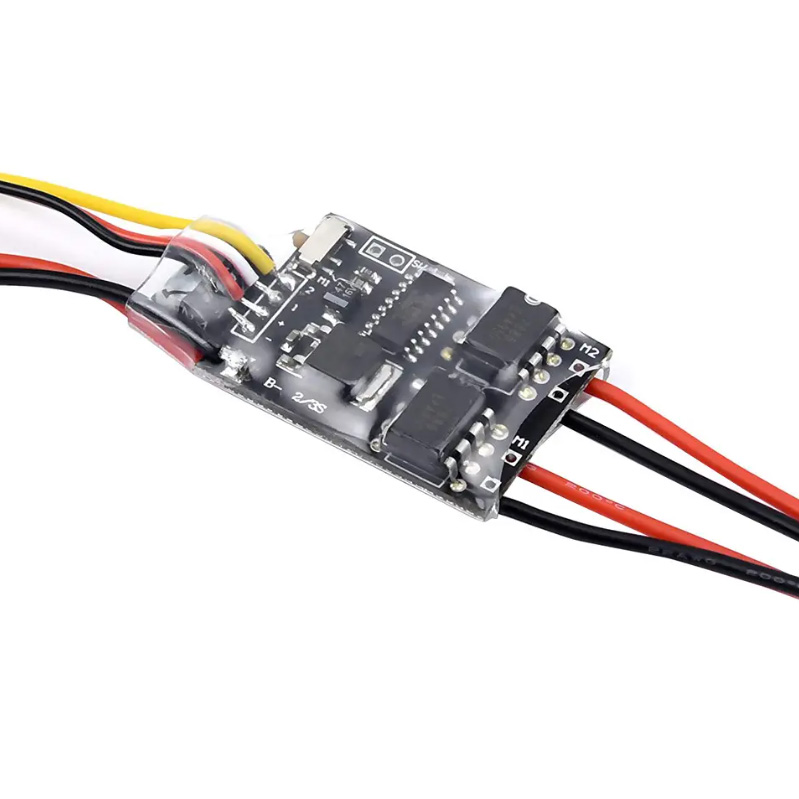

RC Aircraft Lighting PCBA

Product Description

Introducing our RC Aircraft Lighting PCBA - the perfect solution for illuminating your aircraft during those exciting night flights!

We want to take this opportunity to introduce you to our high-quality RC Aircraft Lighting PCBA at Unixplore Electronics. Our primary objective is to make sure that our customers fully comprehend the capabilities and features of our products. We are always eager to partner with our existing and new customers to foster a better future.

Our team of engineers has designed this PCBA using the latest technology, ensuring high performance and efficiency. The RC Aircraft Lighting PCBA is easy to install, allowing you to focus on the fun of flying your aircraft, without any added stress.

Featuring a compact design, this PCBA is lightweight and won't add any significant weight to your aircraft. The LEDs used in this product are of high quality ensuring optimum brightness, and come in multiple colors allowing you to customize the look of your vehicle.

With this innovative product, your RC aircraft can now be fully visible, allowing you to fly in low light conditions with confidence. The lighting system makes it easier to keep your eyes on your aircraft, providing excellent visibility even in dimly lit environments.

Our RC Aircraft Lighting PCBA is made of durable material, ensuring it lasts you a long time. It is power-efficient, which means that your aircraft's battery runs smoothly without draining out too quickly. The easy-to-use interface ensures that even beginners can install and use this product without any difficulty.

Overall, the RC Aircraft Lighting PCBA is an excellent addition to your aircraft, providing effective and reliable illumination. With its easy installation, high-quality components, and low weight, it is the perfect addition to your aircraft's accessory kit.

Upgrade your aircraft today with our RC Aircraft Lighting PCBA – click the order button now to purchase and experience the excitement of night flying!

Unixplore provides one-stop turnkey service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

RC Aircraft Lighting PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● RC Aircraft Lighting PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance
