Unixplore Electronics specializes in one-stop turnkey manufacture and supply for intelligent motor controller PCBA in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E.

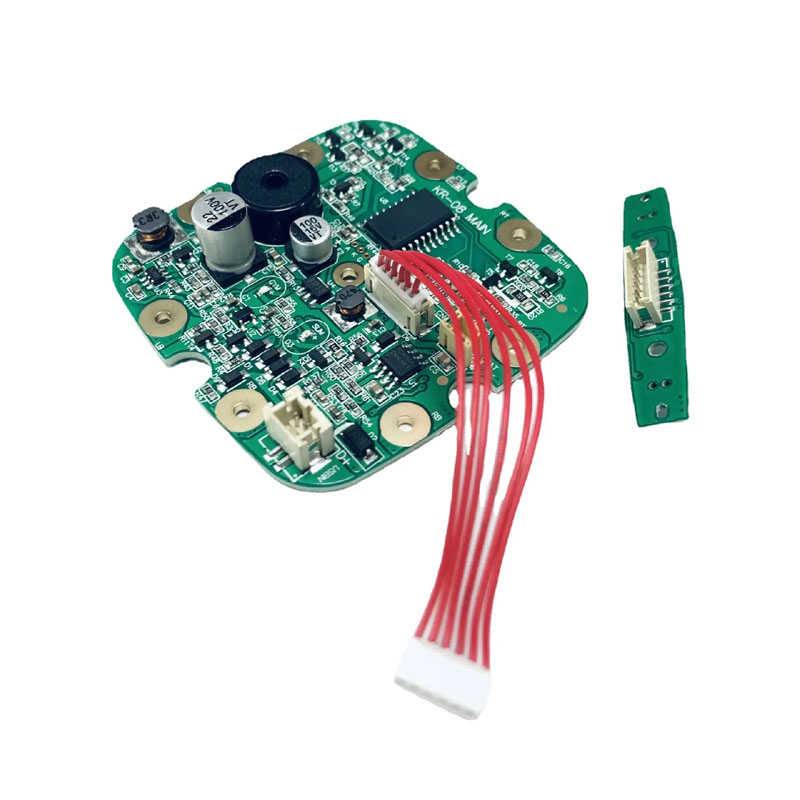

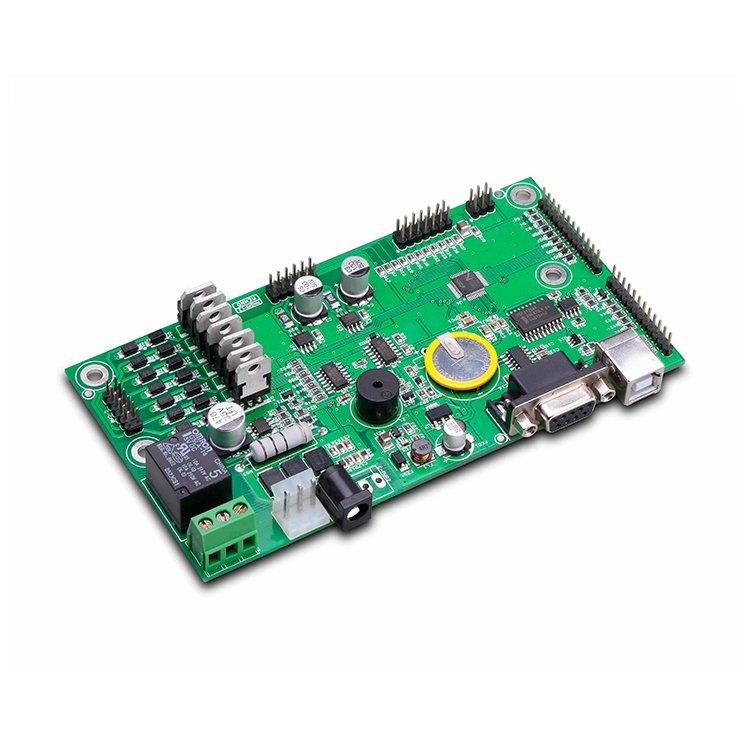

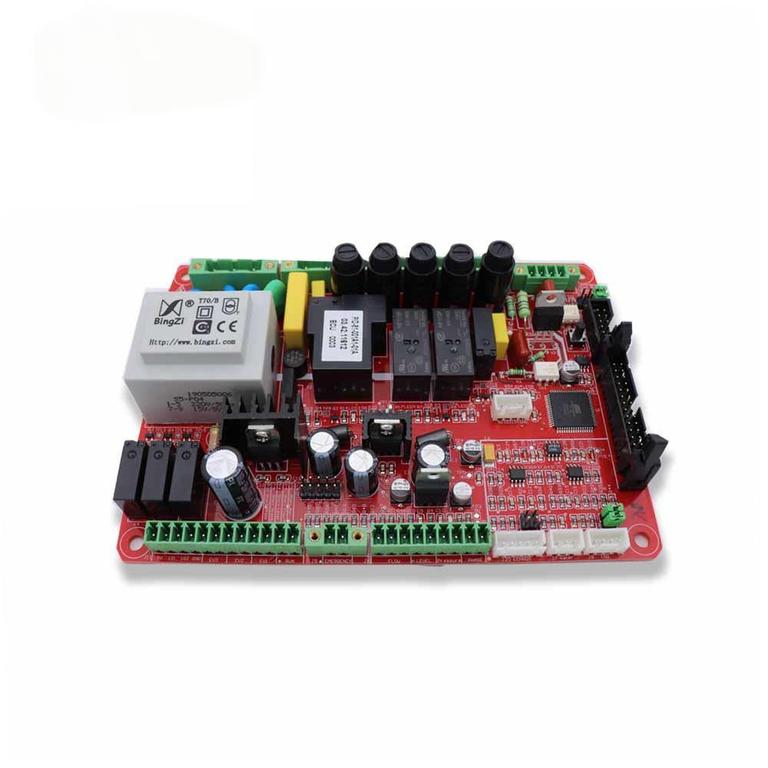

Intelligent motor controller PCBA (Printed Circuit Board Assembly) refers to printed circuit board assembly, which is the process of soldering electronic components to the printed circuit board. The completed assembly is called PCBA. In particular, smart motor controller PCBA refers to the printed circuit board assembly used in smart motor controllers, which integrates many cutting-edge technologies, including motor control, battery charging and protection, sensors, multi-touch and advanced user interfaces.
As the core part of the intelligent motor controller, the intelligent motor controller PCBA controls various types of motors, such as BLDC (Brushless Direct Current) motors, stepper motors, etc., through precise algorithms to achieve intelligent and efficient operation of the motors. At the same time, it also has power and battery health protection, flexible use of various sensors, LED dot matrix, digital tube, LCD full-color liquid crystal display, touch control and other functions.
Intelligent motor controller PCBA has a wide range of applications, especially suitable for health care appliances, kitchen appliances, power tools, garden tools and other fields. Its design and manufacturing capabilities reflect the company's technical strength and innovative spirit, and can be customized according to customer needs to provide customers with key components and overall solutions.
Parameter | Capability |
Layers | 1-40 layers |
Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
Minimum Component Size | 0201(01005 Metric) |
Maximum Component Size | 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm) |
Component Package Types | BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc. |
Minimum Pad Pitch | 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA |
Minimum Trace Width | 0.10 mm (4 mil) |
Minimum Trace Clearance | 0.10 mm (4 mil) |
Minimum Drill Size | 0.15 mm (6 mil) |
Maximum Board Size | 18 in x 24 in (457 mm x 610 mm) |
Board Thickness | 0.0078 in (0.2 mm) to 0.236 in (6 mm) |
Board Material | CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc. |
Surface Finish | OSP, HASL, Flash Gold, ENIG, Gold Finger, etc. |
Solder Paste Type | Leaded or Lead-Free |
Copper Thickness | 0.5OZ – 5 OZ |
Assembly Process | Reflow Soldering, Wave Soldering, Manual Soldering |
Inspection Methods | Automated Optical Inspection (AOI), X-ray, Visual Inspection |
Testing Methods In-House | Functional Test, Probe Test, Aging Test, High and Low Temperature Test |
Turnaround Time | Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days |
PCB Assembly Standards | ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll |
1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping
