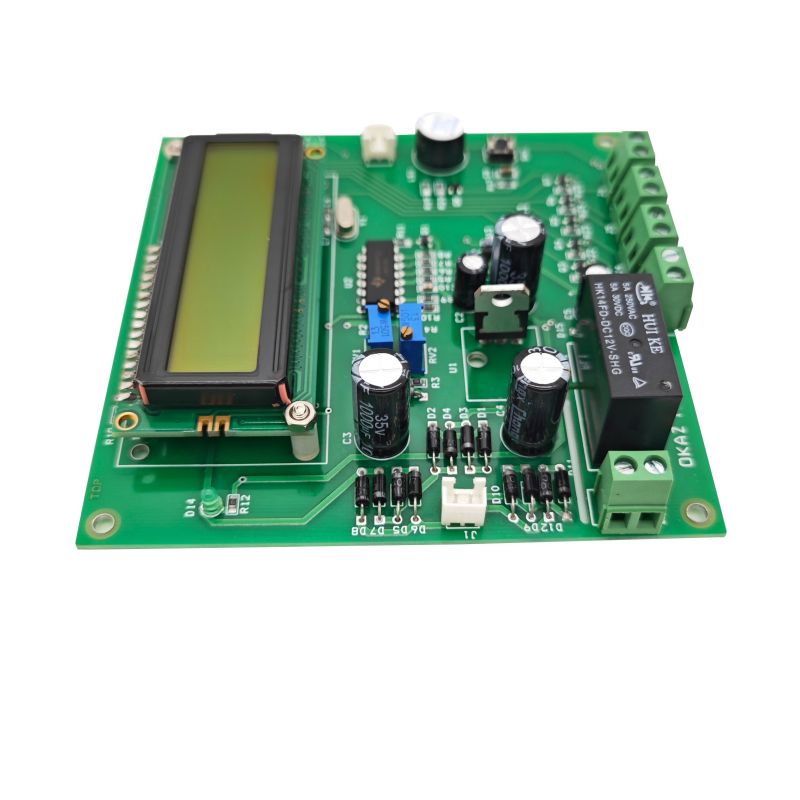

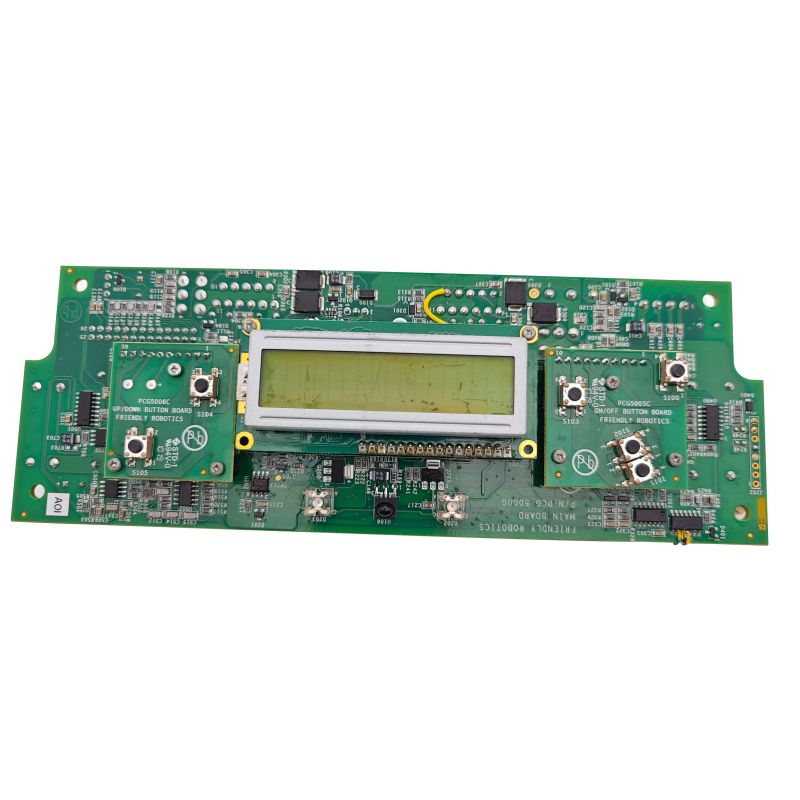

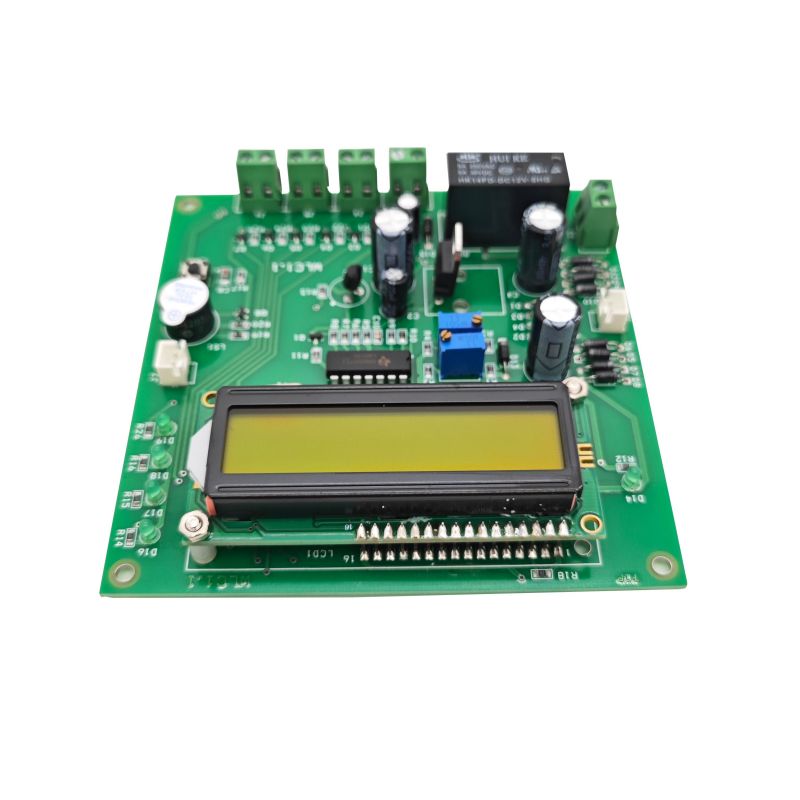

Unixplore Electronics specializes in one-stop turnkey manufacture and supply for Smart Water Meter PCBA in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E,which is widely used in various industrial and domestic smart water meter devices.
Unixplore Electronics is proud to offer you Smart Water Meter PCBA. Our goal is to ensure that our customers are fully aware of our products and their functionality and features. We sincerely invite new and old customers to cooperate with us and move towards a prosperous future together.
Smart water meter PCBA refers to the Printed Circuit Board Assembly of the smart water meter. A smart water meter is a device that can automatically realize intelligent management of water resources such as water meter counting, reading, collection and management through its own sensors or sensors connected to other devices. The smart water meter PCBA is the core part of the smart water meter and has the following main functions:
Data collection: Water meter readings and data collection are realized through the sensors inside the PCBA.
Data transmission: Transmit the collected data to the cloud or other devices to make data analysis and management decisions.
Control function: PCBA can control the water meter's switching valves, measurement and other functions.
Power management: Manage the power supply of smart water meters to ensure the operation of the entire water meter system.
The accuracy, reliability and stability of smart water meter PCBA are the core of smart water meters. If PCBA with excellent performance and reliability is used, the accuracy and long-term stability of smart water meters can be improved, thereby managing water use information more effectively and avoiding water consumption. Waste of resources.
Parameter | Capability |
Layers | 1-40 layers |
Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
Minimum Component Size | 0201(01005 Metric) |
Maximum Component Size | 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm) |
Component Package Types | BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc. |
Minimum Pad Pitch | 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA |
Minimum Trace Width | 0.10 mm (4 mil) |
Minimum Trace Clearance | 0.10 mm (4 mil) |
Minimum Drill Size | 0.15 mm (6 mil) |
Maximum Board Size | 18 in x 24 in (457 mm x 610 mm) |
Board Thickness | 0.0078 in (0.2 mm) to 0.236 in (6 mm) |
Board Material | CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc. |
Surface Finish | OSP, HASL, Flash Gold, ENIG, Gold Finger, etc. |
Solder Paste Type | Leaded or Lead-Free |
Copper Thickness | 0.5OZ – 5 OZ |
Assembly Process | Reflow Soldering, Wave Soldering, Manual Soldering |
Inspection Methods | Automated Optical Inspection (AOI), X-ray, Visual Inspection |
Testing Methods In-House | Functional Test, Probe Test, Aging Test, High and Low Temperature Test |
Turnaround Time | Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days |
PCB Assembly Standards | ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll |
1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping
