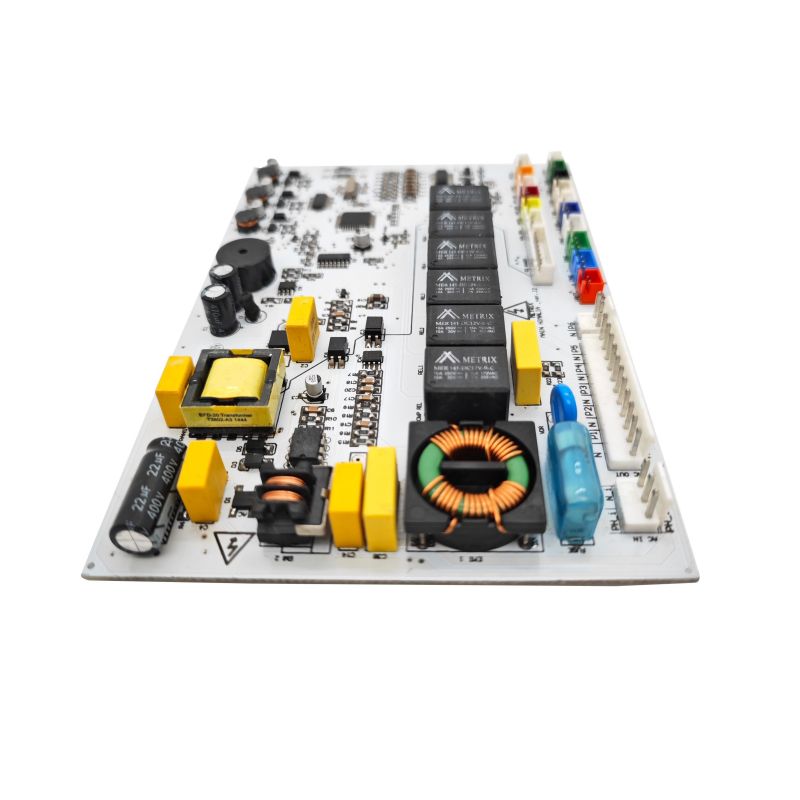

uninterruptible power supply PCBA

Unixplore Electronics specializes in one-stop turnkey manufacture and supply for uninterruptible power supply PCBA in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E,which is widely used in various industrial control equipments and automation systems.

Model:UE-148

Send Inquiry

Product Description

What is Uninterruptible Power Supply PCBA?

Unixplore Electronics is proud to offer you uninterruptible power supply PCBA. Our goal is to ensure that our customers are fully aware of our products and their functionality and features. We sincerely invite new and old customers to cooperate with us and move towards a prosperous future together.

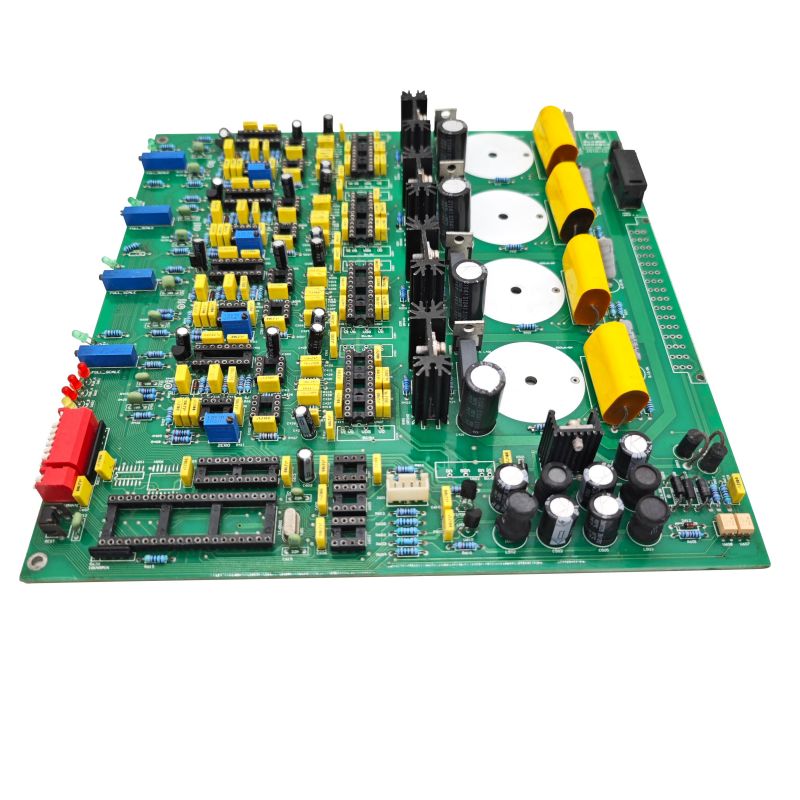

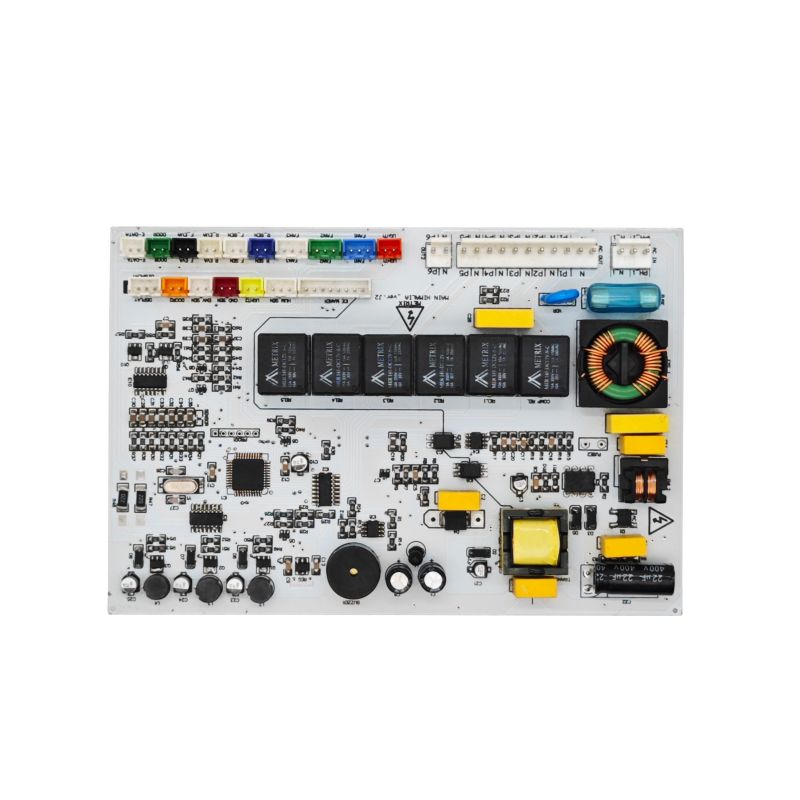

UPS PCBA refers to the main control circuit board or printed circuit board assembly of UPS (uninterruptible power supply) which is a device that provides power backup and stable and uninterrupted power guarantee for key equipment such as computers, servers, and data centers when the main power supply fails.

The UPS PCBA must be efficient, reliable and provide accurate power conversion capabilities to ensure the normal operation of the UPS. It mainly includes the following aspects:

Power management: UPS PCBA needs to be equipped with efficient power management circuits and conversion circuits to ensure high efficiency and high reliability of power conversion by the equipment.

Control function: The UPS PCBA needs to be equipped with a controller that regulates voltage and frequency, and provides a programmable logic controller (PLC) and other control logic to enable the UPS to realize self-diagnosis, protection, automatic shutdown and restart, etc.

Communication interface: The UPS PCBA also needs to be equipped with a communication interface, which can communicate with computers and other equipment to realize UPS status monitoring, control and remote management.

The production and design of UPS PCBA requires precise technology and experience to ensure the reliability, efficiency and stability of the UPS power system.

Unixplore provides one-stop TURN-KEY service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Uninterruptible Power Supply PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Uninterruptible Power Supply PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

1. Automatic solderpaste printing
2. solderpaste printing done
3. SMT pick and place
4. SMT pick and place done
5. ready for reflow soldering
6. reflow soldering done
7. ready for AOI
8. AOI inspection process
9. THT component placement
10. wave soldering process
11. THT assembly done
12. AOI Inspection for THT assembly
13. IC programming
14. function test
15. QC Check and Repair
16. PCBA conformal coating Process
17. ESD packing
18. Ready for Shipping

Packaging

For PCBA

For Finished Product
